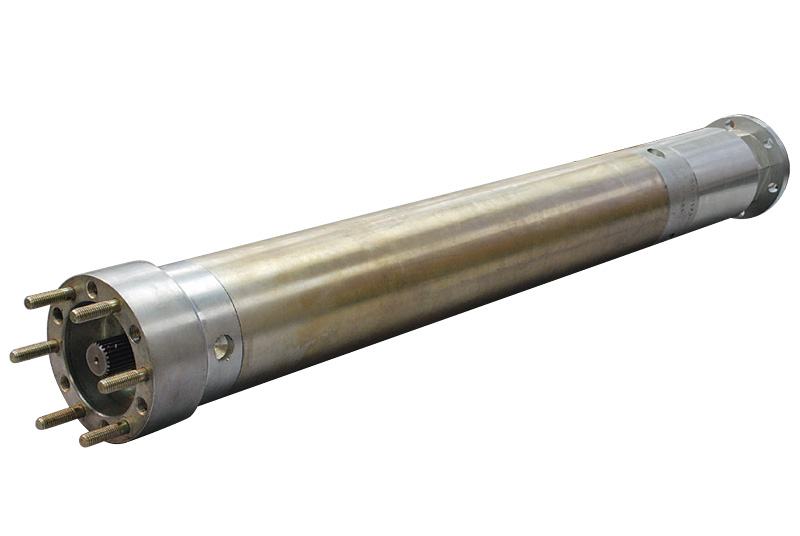

IRZ TMS downhole sensor system is used as a part of electric submersible pumps (ESP).
Downhole monitoring systems

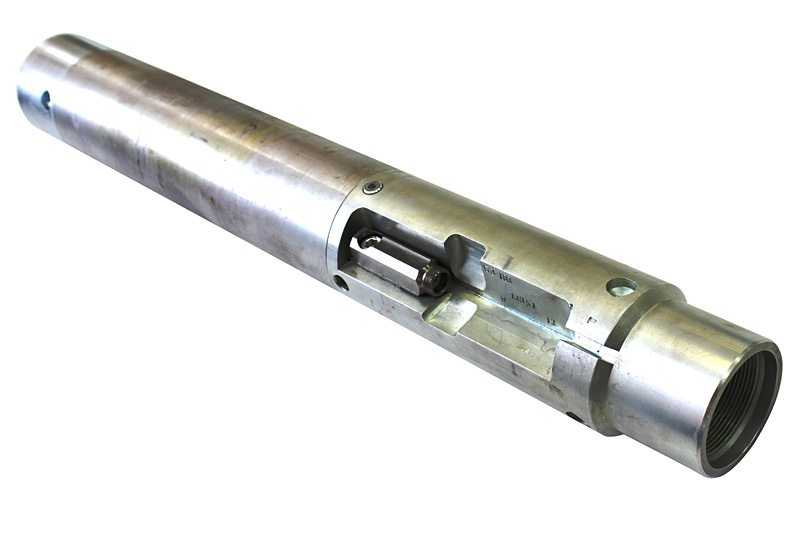

IRZ TMS downhole sensor system with thru shaft is designed for wells with one motor and two pumps.

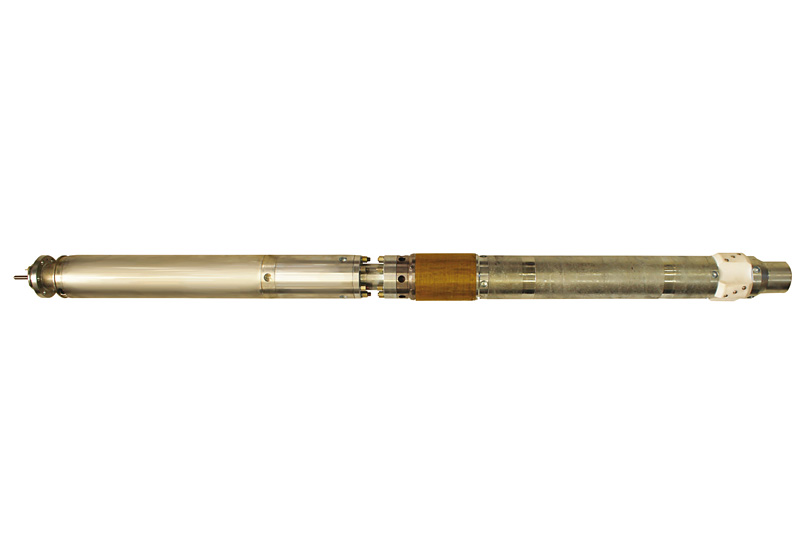

IRZ TMS-R flow metering downhole sensor system includes additional remote downhole unit that measures flow rate, pressure and temperature of production fluid passing through the unit.
Variable frequency drives

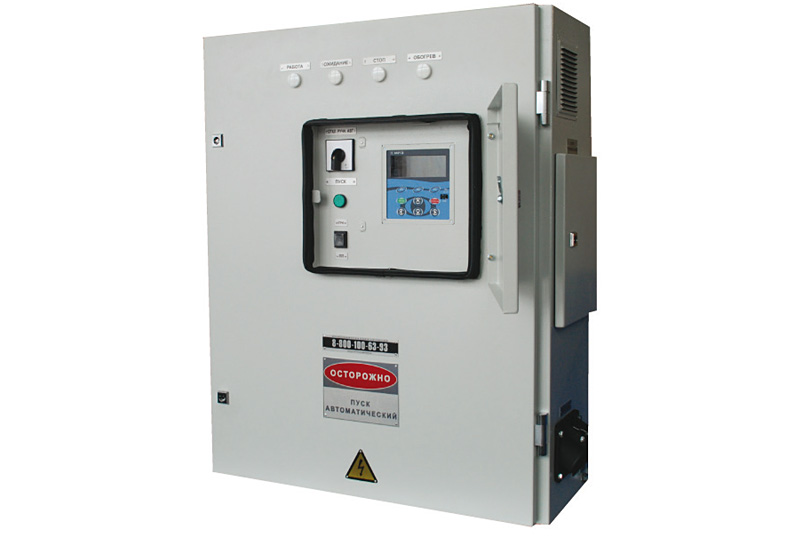

Operation, control and protection of submersible electric motors (SEM) with capacity from 3 to 250 kW.

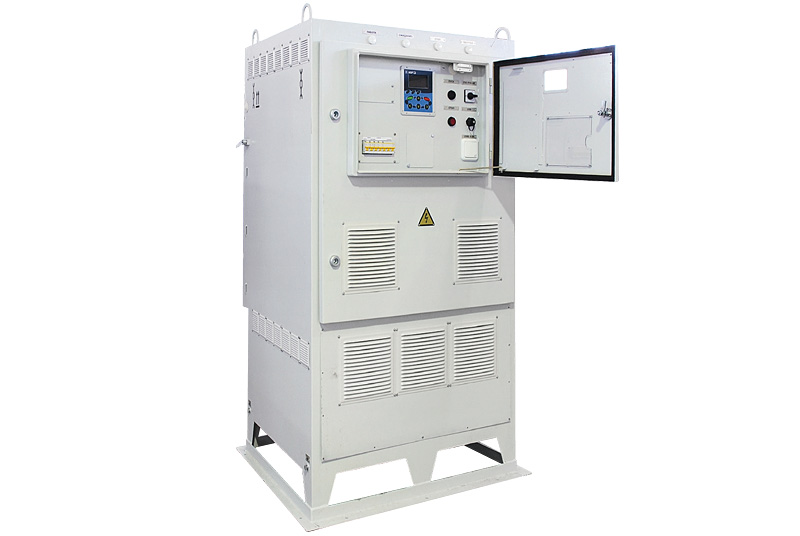

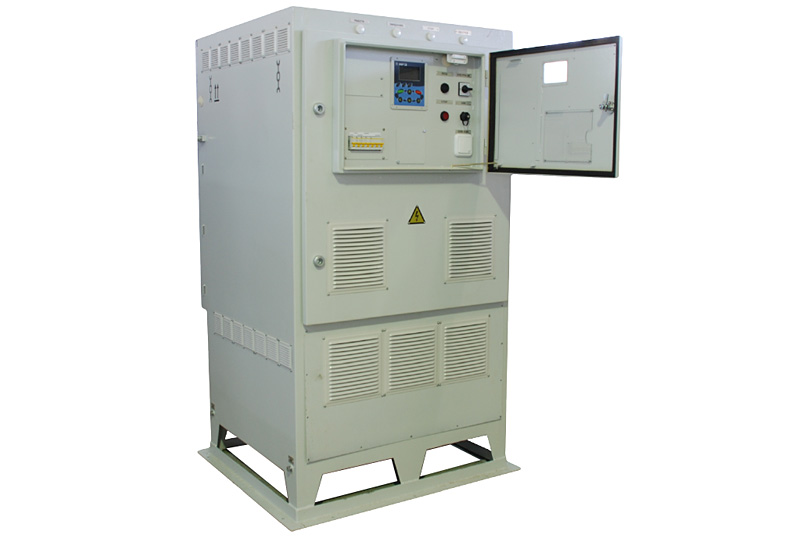

The station ensures control, parameters monitoring and protection of submersible asynchronous motors with power ranging from 5 to 320 kW enabling smooth acceleration and deceleration and speed control.
The station ensures control, parameters monitoring and protection of submersible asynchronous and permanent magnet electric motors with power ranging from 14 to 320 kW enabling smooth acceleration, deceleration and speed control.
The station ensures control, parameters monitoring and protection of submersible asynchronous motors with power ranging from 14 to 320 kW enabling smooth acceleration and deceleration.

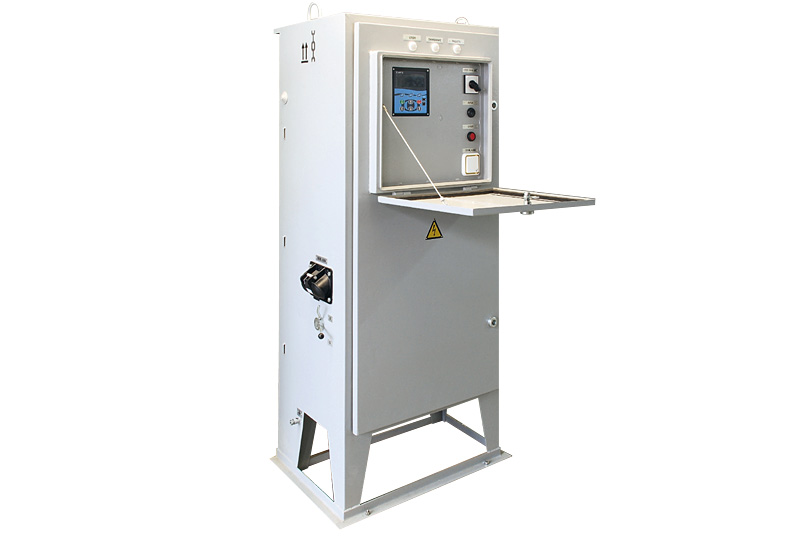

The station ensures control, parameters monitoring and protection of SRP electric motors with power ranging from 5 to 55 kW enabling smooth acceleration, deceleration and speed control.
Equipment based on downhole units

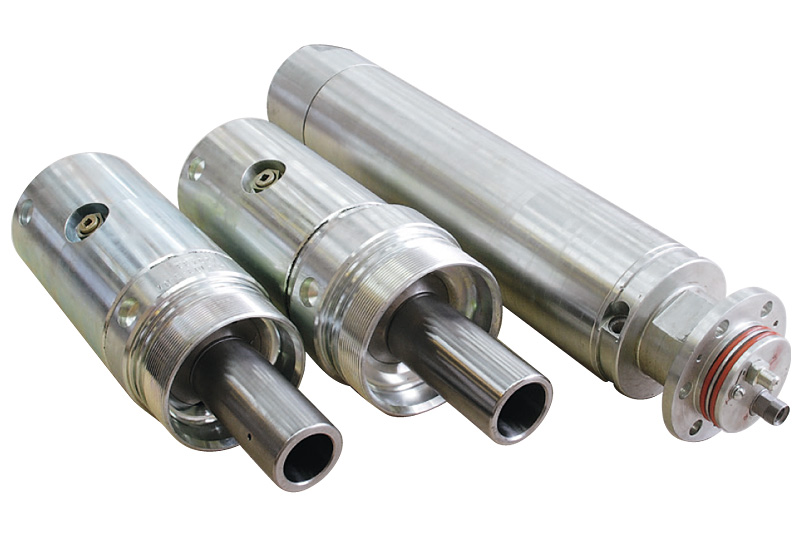

Influence of AC electromagnetic field results in the active formation of fine crystals in fluid and modified structure which are then lifted to the surface not being deposited on the downhole equipment.
Automated process control systems

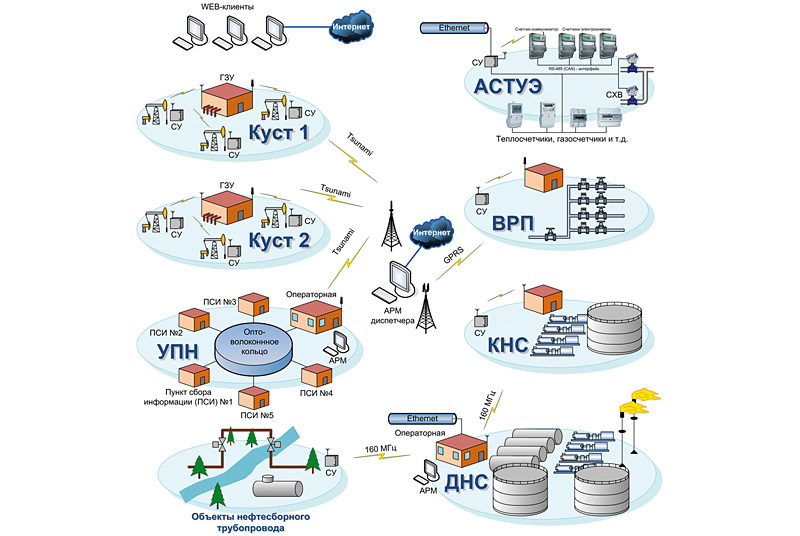

Remote monitoring and control of equipment used at the oilfield in order to improve the efficiency of production process and to reduce costs.

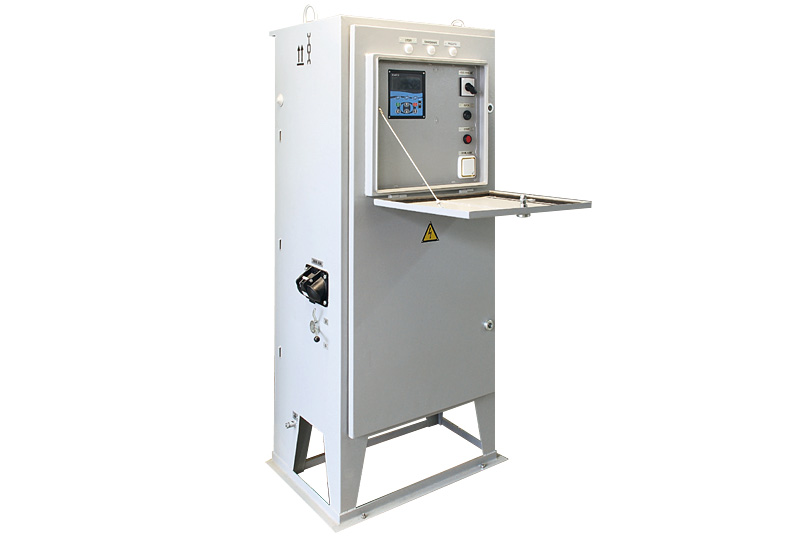

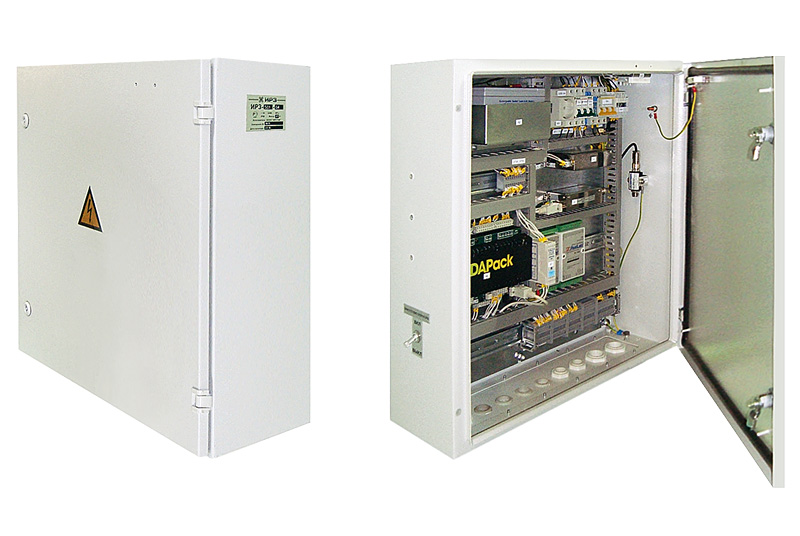

The control station is designed to collect, process and storage the data from automated objects and transfer it to the upper level of automatic process control system.
Equipment for testing

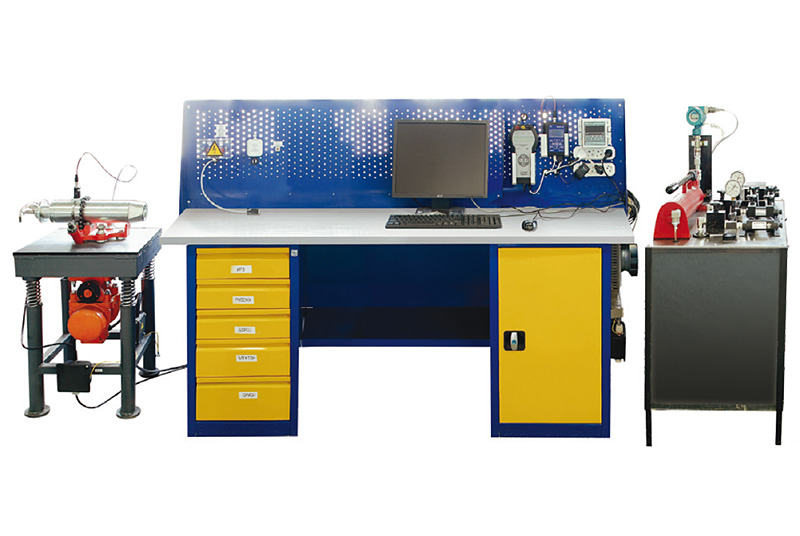

ST BP-M test bench is used to test downhole sensors and ground acquisition units of monitiring systems produced by OOO “IRZ TEK”, ELEKTON, BORETS, Schlumberger, etc.
